A paint mist filter box is a dry filtration unit installed in a spray booth exhaust system that captures overspray paint particles before they reach the atmosphere. Unlike water-wash booths, it needs no water: overspray droplets impact and stick to internal baffles and filter media, while cleaned air flows out through the stack. In this guide, we explain how paint mist filter boxes work, compare the five main types on the market, decode the specifications that actually matter, and help you choose the right solution for your coating line.

What Is a Paint Mist Filter Box?

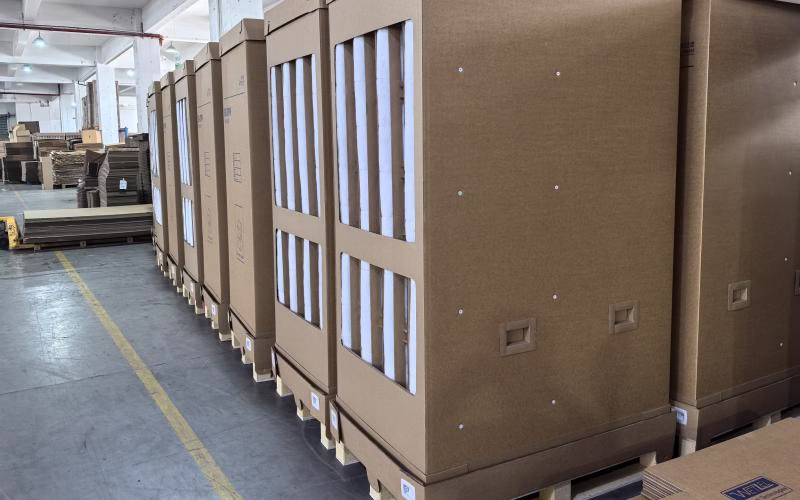

A paint mist filter box — also called a dry paint mist collector, overspray filter box, or paint arrestor box — is a self-contained, replaceable cartridge that sits between the spray booth and its exhaust fan. Its job is simple to describe but critical in practice: stop wet, sticky paint droplets from travelling down the ductwork, coating the fan blades, and discharging into the air around your facility.

Most boxes combine two elements. First, a rigid outer shell, usually made of corrugated paper or paper-based composite, holds its shape under continuous airflow. Second, internal media — baffle walls, honeycomb channels, or fiber layers — physically trap the paint. Because the entire unit is disposable, replacement is just a matter of sliding out the loaded box and sliding in a fresh one: no messy media handling, no water, no chemicals.

Why does this matter today? For most of the 20th century, the default overspray control was the water-wash booth, which used recirculated water curtains or scrubbers to rinse paint out of the airstream. Water-wash systems work, but they carry a permanent operating burden: water treatment chemicals, sludge disposal contracts, pump energy, and growing compliance risk around wastewater discharge. As environmental rules tighten across Europe, Southeast Asia, Japan and the Americas, manufacturers are shifting to dry filtration — a paint mist filter box captures the same overspray but produces zero liquid discharge and a solid filter that can be recycled or incinerated for energy recovery.

How Does a Paint Mist Filter Box Work?

Dry collection relies on physics, not water. Here is the step-by-step path an overspray particle takes through a typical box:

1. Overspray is drawn into the box. The booth’s exhaust fan pulls air — carrying paint droplets from roughly 1 µm to over 100 µm — toward the filter at a design face velocity of about 1–2 m/s.
2. Coarse droplets are stopped by inertia. Inside the box, the air path changes direction sharply at baffle walls, maze channels, or honeycomb cell walls. Heavy droplets (typically above 20 µm) cannot follow the turn; they slam into the surface and stick.
3. Fine droplets are captured by the media. Smaller particles that do follow the airstream pass into fiber or deep-bed media, where they collide with surfaces and are held by adhesion — a mechanism called interception.
4. Paint accumulates inside, clean air exits. Captured paint loads progressively into the box’s internal structure. Because the paint is held inside the cartridge rather than on the fan or ductwork, downstream equipment stays clean and finish quality is protected.
5. The box is replaced when full. As media fills, airflow resistance — pressure drop — rises. When it reaches the terminal limit recommended by the manufacturer, the whole box is swapped out in minutes. No washing, no chemicals, no wastewater.

The number that defines how long a box lasts is its dust-holding capacity: the mass of paint a square metre of media can store before reaching terminal pressure drop. Higher capacity means longer service intervals and lower cost per painted part — this is why deep-bed designs have become the industry standard for high-volume lines.

The 5 Main Types of Paint Mist Filter Boxes

All dry filter boxes separate paint from air using one of five physical principles. Knowing which type you are buying — and why — prevents the two most common mistakes: buying a cheap pad for a robotic line that needs a deep-bed cartridge, or installing a paper filter where it will face heavy moisture.

Dry Filter Box vs. Water-Wash Booth: Side by Side

Why are industrial buyers switching? Five advantages make the dry box compelling for B2B customers and distributors:

• Lightweight, modular, tool-free: the paper construction minimizes structural load on the booth, and change-outs cut labor hours and downtime.
• Eco-friendly by design: 100% recyclable pure paper media, compliant with EU REACH and RoHS — a decisive factor in markets like Japan and Europe.
• Lower total cost of ownership: no water treatment, chemicals, or hazardous-waste fees. Sourced factory-direct, there are no intermediary markups on the filter itself.
• Full customization: specific dimensions, filtration precision, and custom filter cores for non-standard OEM/ODM projects.
• Wide compatibility: from small manual touch-up booths to large automated production lines.

Key Specifications Explained

When comparing datasheets from different suppliers, these six parameters tell you the real story:

Data note: the figures above come from our own factory tests in Kunshan, China. When evaluating any supplier, ask for the actual test report behind the headline number — datasheet values, not marketing claims, are what keep your line running predictably.

How to Choose the Right Paint Mist Filter Box

There is no universal “best” filter box — the right choice depends on your paint, your airflow, and your line’s duty cycle. Answer these five questions:

• What paint are you spraying? Solvent-borne paints are tacky and may need anti-wetting coated media; waterborne paints produce fine droplets that require efficient deep-bed capture.
• How fine is your overspray? If most droplets are above 20 µm, a maze or baffle box may be enough. For fine atomization from robotic guns, choose honeycomb or DPA media that captures down to 5–10 µm.
• What is your airflow? Match the box to your booth’s face velocity and volume; oversizing wastes money, undersizing causes premature clogging.
• What is your change-out cost? A higher-priced high-capacity cartridge often wins because total cost per painted part is lower.
• What do local rules require? Check fire-retardancy ratings (UL 94 V-0) and whether used filters must be landfilled or incinerated — that determines the best material.

For a detailed, step-by-step selection framework — including the full history of each type and cost comparisons — read How to Choose the Right Paint Mist Filter Boxes for Your Spray Booth.

Applications Across Industries

Dry paint mist filter boxes are trusted in demanding coating environments where reliability is non-negotiable:

• Heavy machinery & automotive: high-viscosity paints in commercial vehicle assembly, agricultural equipment, and earthmoving machinery lines.
• Marine & rail: large-scale shipbuilding and electric locomotive workshops handling complex working conditions.
• Consumer goods & appliances: high-volume coating lines for refrigerators, air conditioners, and household appliances.
• High-tech cleanrooms: semiconductor fabrication and pharmaceutical facilities requiring ultra-low particulate levels and zero secondary pollution.

For a deeper look at where each product performs best, see our article on Applications of the New Dry-Type Paint Mist Filter Cartridge, or review the KH1200 composite filter carton used on large-component lines.

Paint Mist Filter Box FAQ
